| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

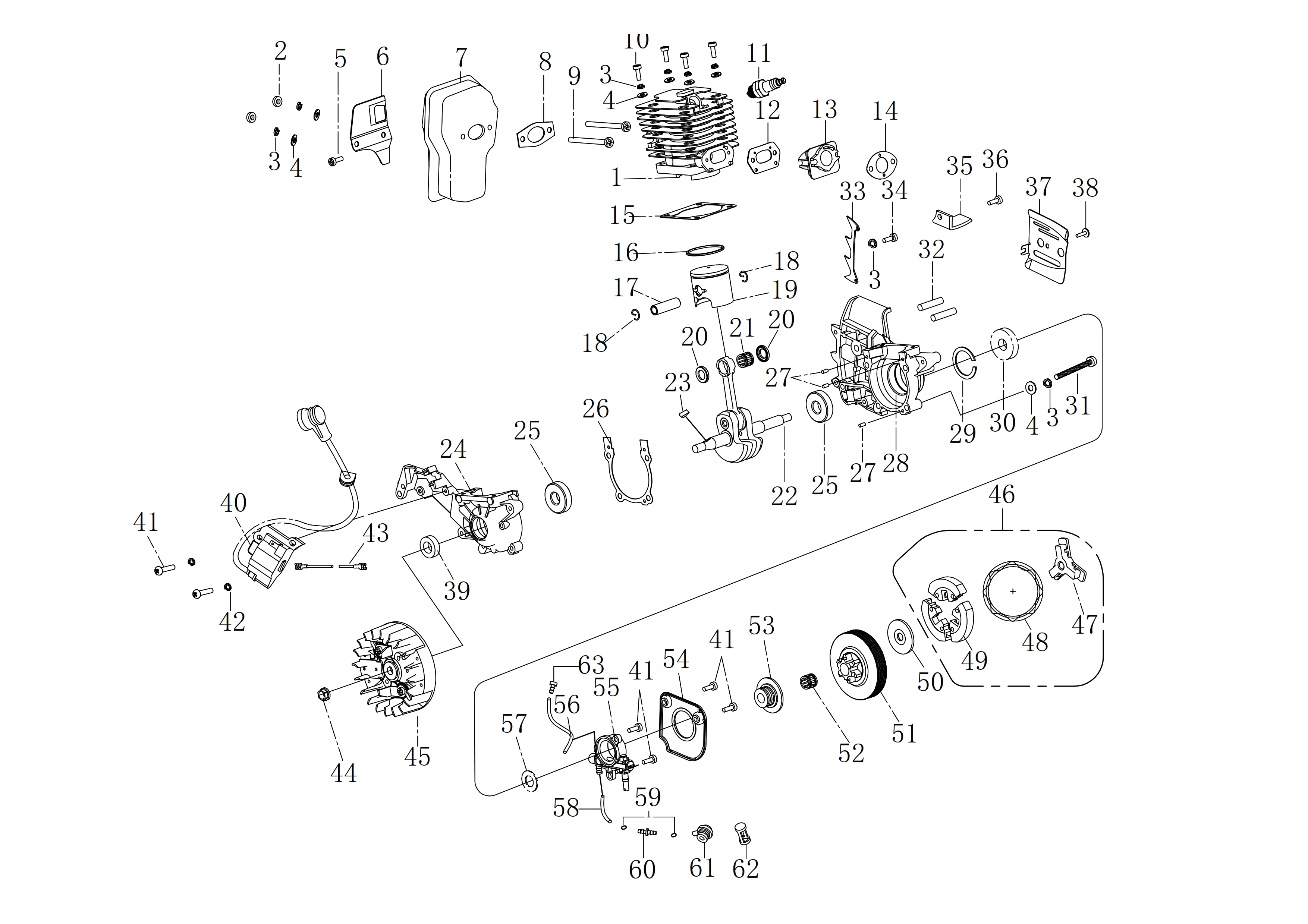

| Drawing 1 | ||||
| 1 | 20070001
CYLINDER BODY | Low Stock | 34.18 | |
| 2 | 20061357
NUT M5 | Not Available | ||
| 3 | 20054560
WASHER 5 | Not Available | ||
| 4 | 20054561
WASHER 5 | Not Available | ||
| 5 | 20060972
SCREW M5X14 | Not Available | ||
| 6 | /
SILENCER COVER PLATE | Not Available | ||
| 7 | 20056611
SILENCER BODY | Not Available | ||
| 8 | 20050659
SILENCER SEALING GASKET | Not Available | ||
| 9 | 20056586
MUFFLER CONNECTING SCREW | Not Available | ||
| 10 | 20054552
SCREW M5X20 | Not Available | ||
| 11 | 20079314
SPARK PLUG RCJ7Y | Low Stock | 9.99 | |
| 12 | 20050663
AIR INTAKE TUBE SEALING GASKET | Not Available | ||
| 13 | 20056585
AIR INTAKE TUBE | Not Available | ||
| 14 | 20050665
CARBURETOR SEALING GASKET | Low Stock | 3.99 | |
| 15 | 20050657
CYLINDER SEALING GASKET | In Stock | 5.25 | |
| 16 | 20053137
PISTON RING | In Stock | 5.69 | |
| 17 | 20053104
PISTON PIN | Low Stock | 5.42 | |
| 18 | 20053105
PISTON PIN CIRCLIP | Low Stock | 1.99 | |
| 19 | 20053138
PISTON | Low Stock | 11.48 | |
| 20 | 20056604
NEEDLE BEARING RING | Low Stock | 5.25 | |
| 21 | 20056608
NEEDLE BEARING 10X14X11 | Low Stock | 6.58 | |
| 22 | 20056605
CRANK SHAFT COMPONENTS | Low Stock | 24.83 | |
| 23 | 20054650
SEMICIRCULAR KEY 3X3.5X10 | Low Stock | Contact Us | |
| 24 | 20053085
LEFT CRANK CASE | Not Available | ||
| 25 | 20061605
BEARING 6201 GRADE D 12X32X10 | Not Available | ||
| 26 | 20050669
CASE BODY SEALING GASKET | Not Available | ||
| 27 | 20054568
PIN 3X9 | Not Available | ||
| 28 | 20053094
RIGHT CRANK CASE | Not Available | ||
| 29 | 20061518
SHIELD RING 32 | Not Available | ||
| 30 | 20056597
OIL SEAL 12X32X5.5 | In Stock | 5.91 | |
| 31 | 20061084
SCREW M5X30 | Not Available | ||
| 32 | 20054554
DOUBLE-SCREW BOLT AYM8-M8X41-8.8 | Not Available | ||
| 33 | 20081924
SPIKED BUMPER | Not Available | ||
| 34 | 20054549
SCREW M5X12 | Not Available | ||
| 35 | 20055118
CHAIN CATCHER | Not Available | ||
| 36 | 20056589
CHAIN CATCHER SCREW | Not Available | ||
| 37 | 20055115
DAMPER | Not Available | ||
| 38 | 20054537
SCREW M4X10 | Not Available | ||
| 39 | 20056600
OIL SEAL 12X22X7 | In Stock | 3.99 | |
| 40 | 20050728
IGNITER | In Stock | 24.70 | |
| 41 | 20061071
SCREW M4X14 | Not Available | ||
| 42 | 20054563
WASHER4 | Not Available | ||
| 43 | /
EXTINCTION CONDUCTOR | Not Available | ||
| 44 | 20054557
NUT M8X1 | Not Available | ||
| 45 | 20050726
FLYWHEEL ASSEMBLY | In Stock | 20.82 | |
| 46 | 20056591
CLUTCH ASSEMBLY | Low Stock | 4.80 | |
| 47 | 20056592
RETAINTER | Low Stock | 7.47 | |
| 48 | 20055128
CLUTCH EXTENSION SPRING | Low Stock | 5.42 | |
| 49 | 20056593
SHOE BLOCK | Low Stock | 7.47 | |
| 50 | 20055114
CLUTCH ADJUSTING WASHER | Low Stock | 5.51 | |
| 51 | 20056583
CLUTCH SHELL | Not Available | ||
| 52 | 20056594
NEEDLE BEARING 10X13X13 | Low Stock | 7.43 | |
| 53 | 20056587
WORM | Low Stock | 5.69 | |
| 54 | 20056555
COVER PLATE | Low Stock | 5.33 | |
| 55 | 20056842
OIL PUMP | Low Stock | 13.70 | |
| 56 | 20056830
OIL OUTGOING TUBE 3X6.5X75 | Not Available | ||
| Manufacturer Model Number | MCSWP40-2 |
| EAN | 5059340255873 |
| Brand | Mac Allister |
| Description | 40.1CC 40CM CHAINSAW (WALBRO CARB VERSION) |
